Step-by-Step Instructions for Direct Connection to Internet Router
Watch a video on how to install the SenseHub® Cow Calf to an internet router, read the step-by-step instructions below or download the Installation and Startup Guide.
Have installation Questions? Call (450) 261-5297.
Step-by-Step Instructions

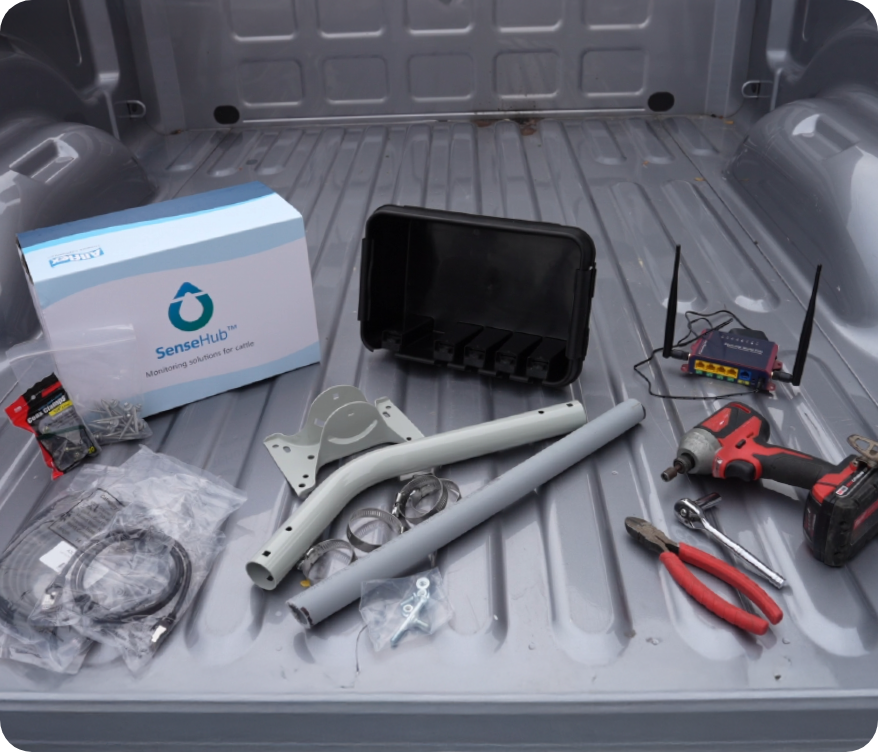

For a direct connection to your router, you’ll need the following*:
- SenseHub® Controller
- Black weather-protective box
- Internet router
- Ethernet cable
- Antenna Mast
- Section of PVC pipe
For mounting*:
You’ll need an impact driver or drill, socket wrench, wire cutters and the following hardware:
- Hose clamps
- Self-tapping screws
- Zip ties
- Supplied mounting hardware
* Not all parts or pieces displayed may be required and may vary according to installation requirements and/or the model version.

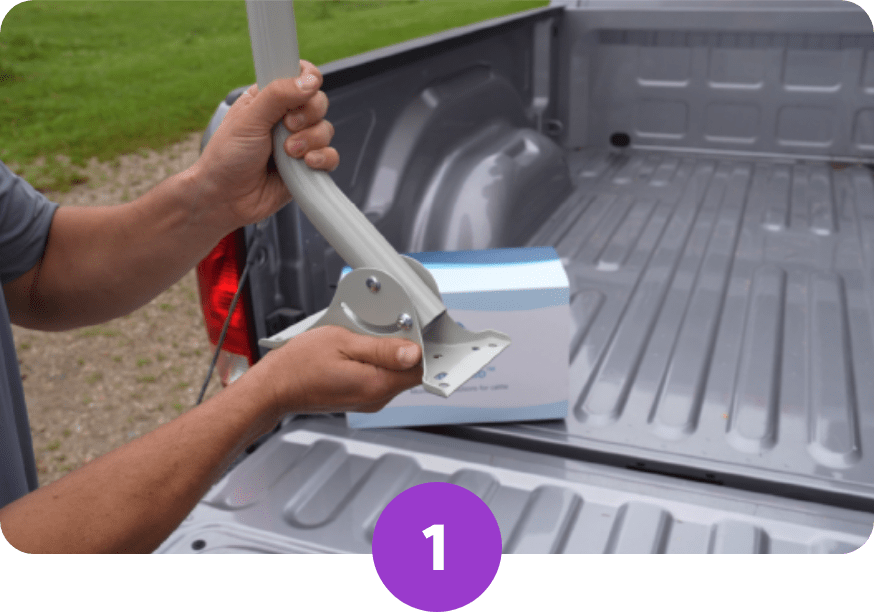

Connect the Antenna Mast to the mounting bracket using the two supplied bolts to affix. The bottom bolt will be tightened later to set the desired angle based on the mount to the desired roof or building side.

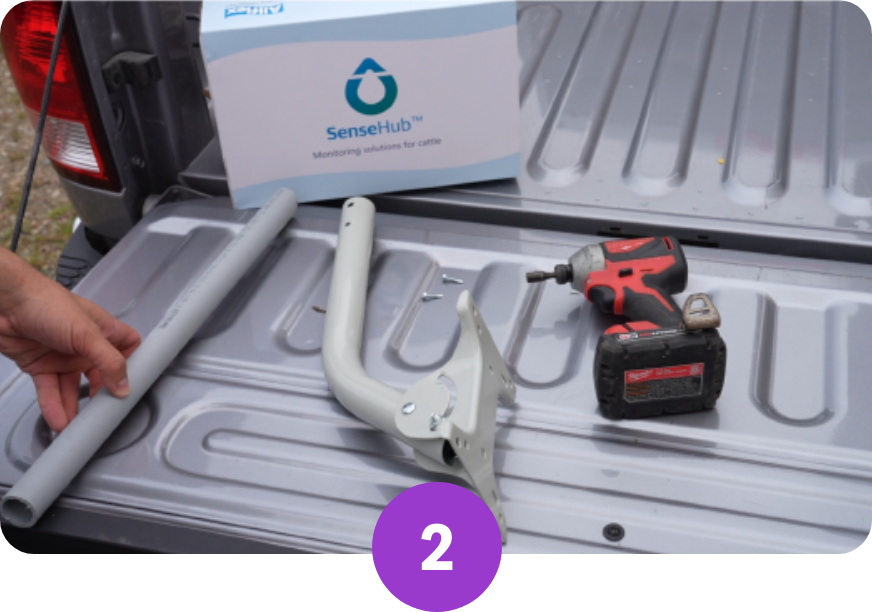

Insert PVC pipe into the Antenna Mast. Secure by using a drill and two self-tapping screws.

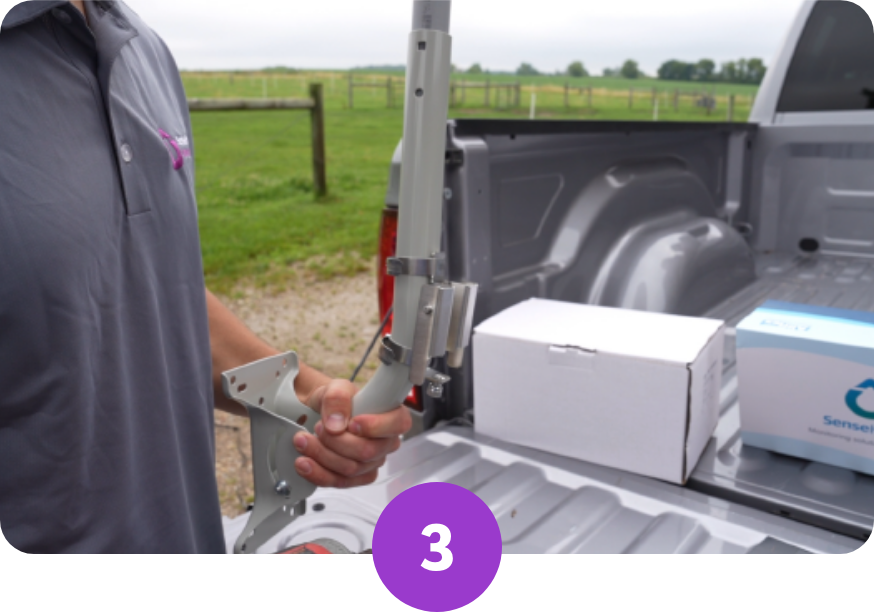

Remove the metal mounting bracket from the backside of the SenseHub® Controller. Using two hose clamps, attach the bracket to the lower part of the Antenna Mast facing outward.

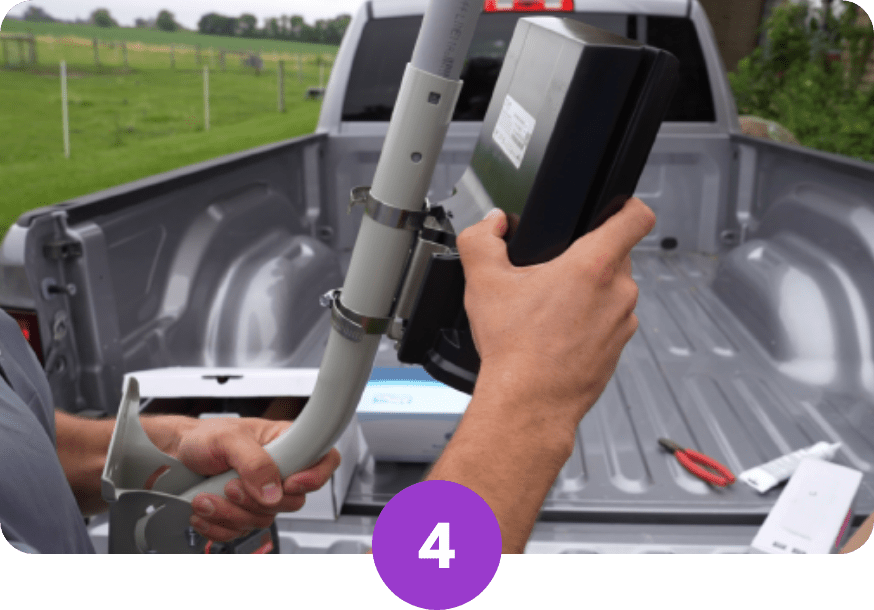

Slide the SenseHub® Controller onto the mounting bracket and tighten the bottom bolt to secure the Controller to the mount.

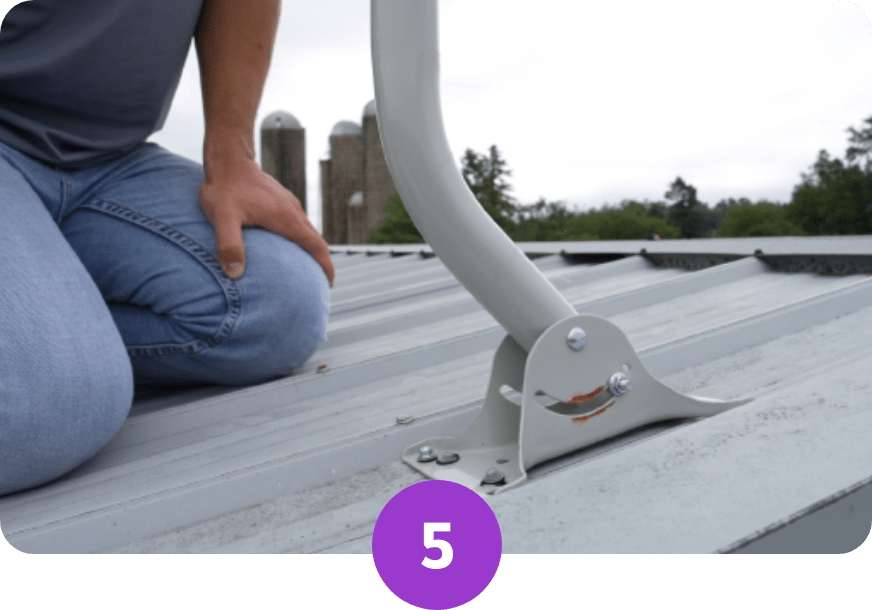

Using lag bolts, attach the mounting bracket to the post, building or wall in the desired location. This is where the Controller will collect data from SenseHub® tags.

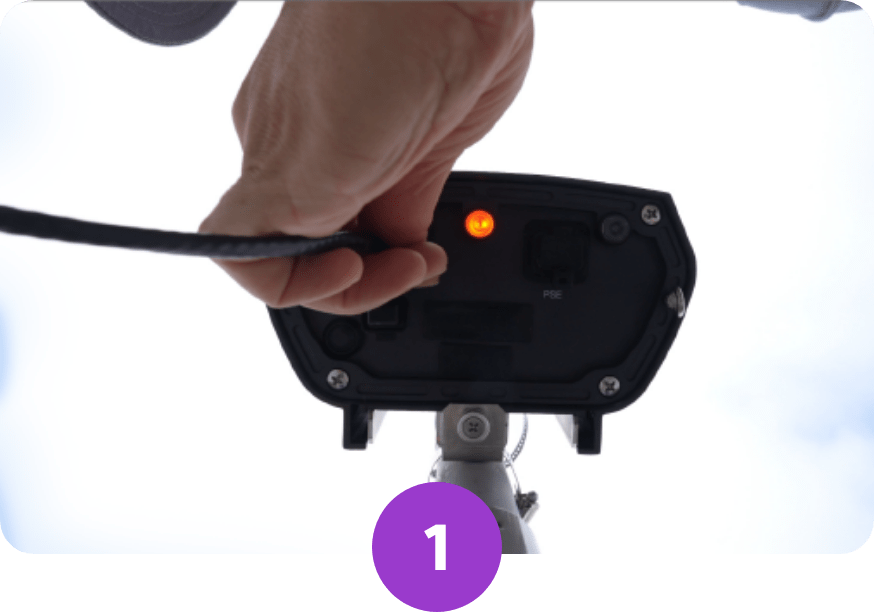

Using an Ethernet cable, connect one end of the cable to the PD port on the SenseHub® Controller.

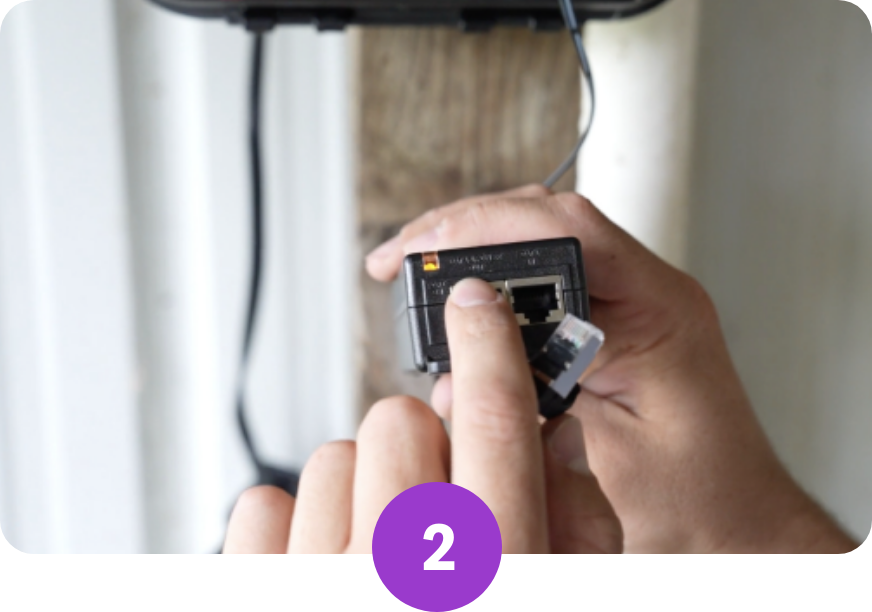

Connect the other end of the Ethernet cable to the Power and Data port to the 55v SenseHub® power supply that comes in the box with the Controller. Then, connect another Ethernet cable from the “Data Only” port on this power supply to the internet router or network switch. Once connected to the internet, the light on the Controller will turn from red to green.

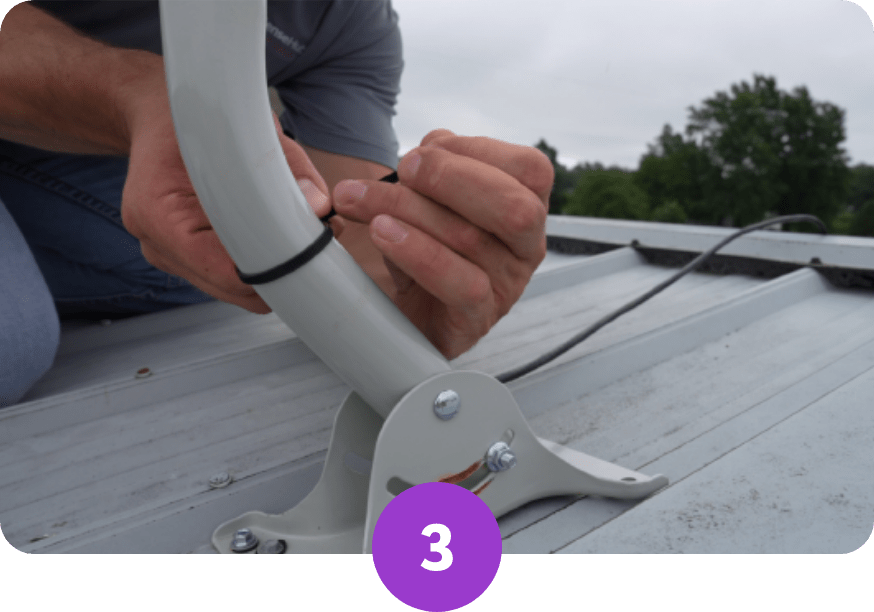

Using zip ties, secure the Ethernet cable to the Antenna Mast and to the structure. Do not pull too tightly, as it could damage the cable.
Your SenseHub® Cow Calf system should now be set up and ready to begin collecting data on your herd. While data is collected immediately after setup, it will take up to 5 days for the system to create a baseline and start sending alerts. If you have any questions or issues, please contact your Merck representative.
- If you are looking for steps on how to install the SenseHub® Cow Calf System with an antenna connection, refer to scenario two.
- If you are looking for steps on how to install the SenseHub® Cow Calf System on its own solar panel, please refer to the steps for scenario three.
Download the SenseHub® Cow Calf Installation and Startup Guide with all three scenario instructions, software installation info and troubleshooting tips.
